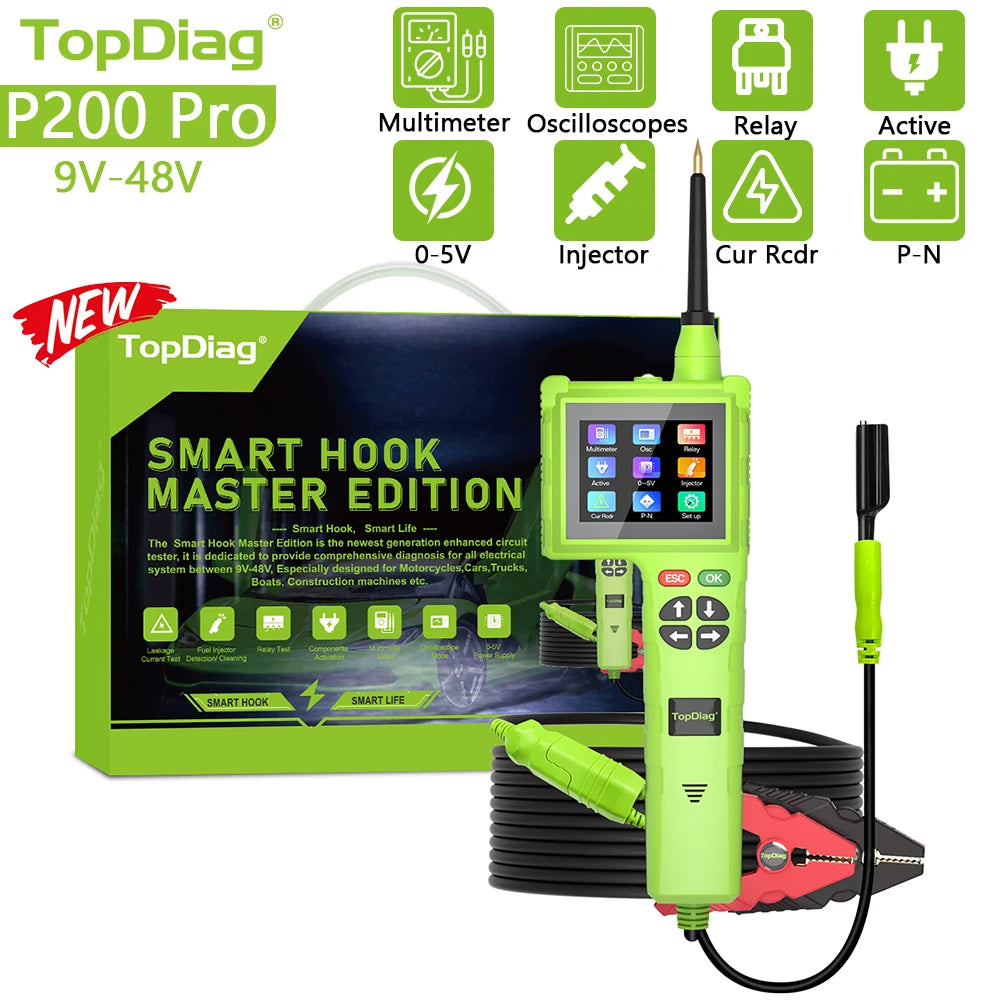

Topdiag P200 Pro Circuit System Tester 9V-48V Power Circuit Probe Kit Vehicle Leakage Detection Oscilloscope Diagnostic Tool

$344.99 USD

~~$0.00 USD~~ $344.99 USD

Sale Sold out

Shipping calculated at checkout.

Color P200 Pro

Ships From United States

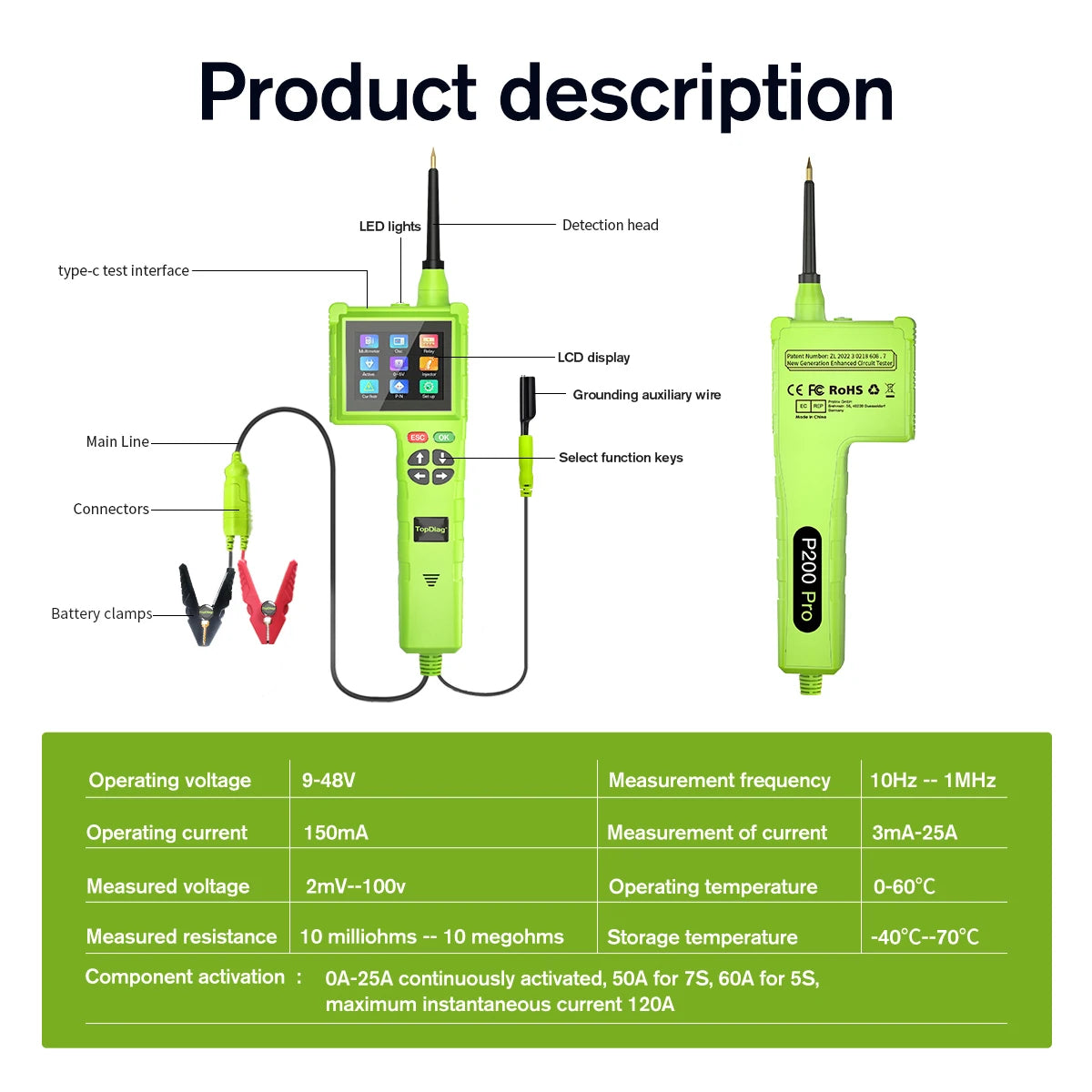

SPECIFICATIONS

Brand Name: TopDiag

Circuit voltage range for testing: 2mV-99.9V

External Testing Certification: ce

Function 1: Leakage detection

Function 2: Nozzle inspection and cleaning

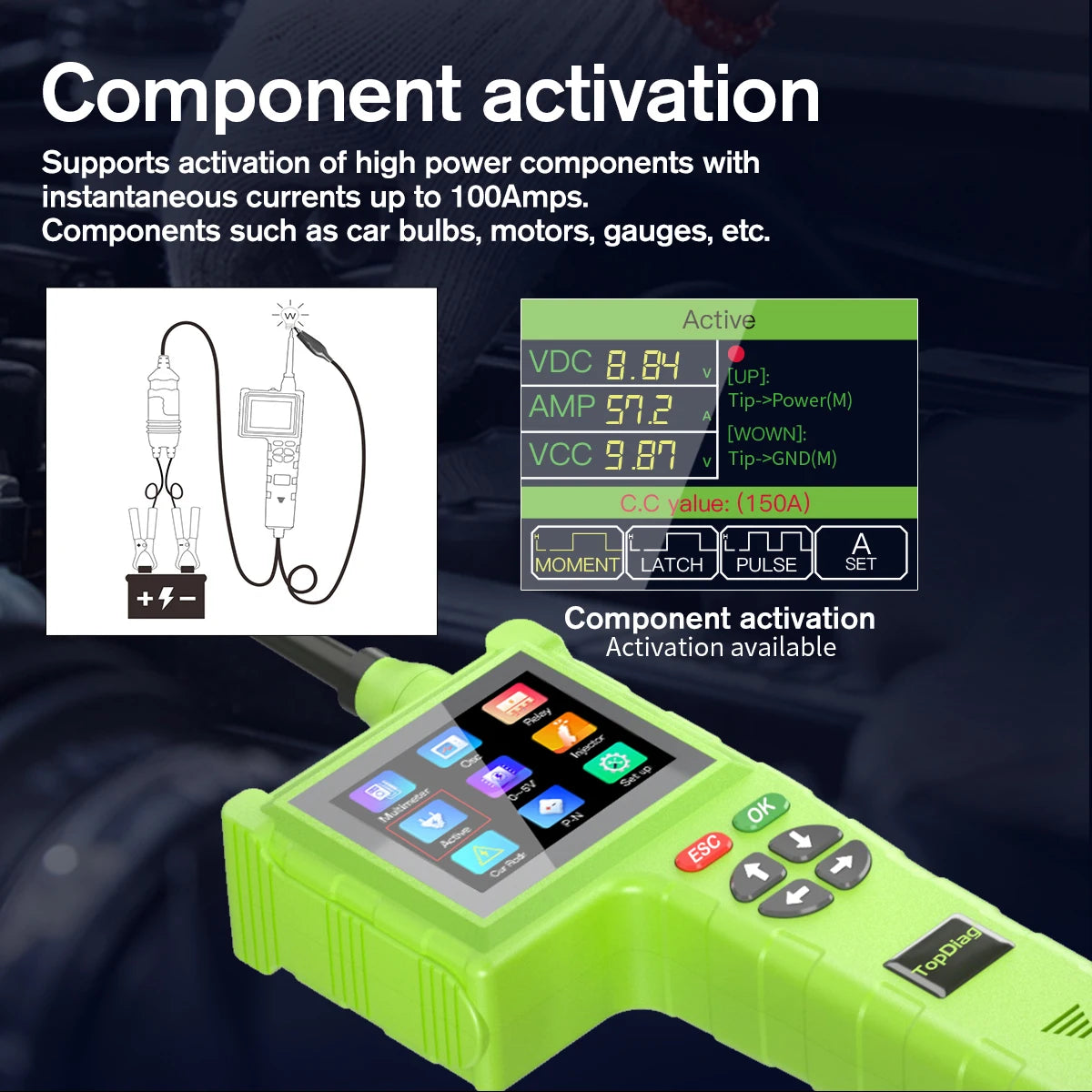

Function 3: Component activation

Function 4: Relay detection

Function 5: Multimeter functions

Function 6: Oscilloscope functions

Function 7: 1 ohm~200K ohm

Hardware Version: NEWEST VERSION

High-concerned chemical: none

Is Batteries Included: no

Item Height: 11

Item Length: 31

Item Type: Electrical Testers & Test Leads

Item Width: 23

Leakage current detection range: 10 mA - 25 A

Material: ABS

Model Name: Topdiag P200 Pro

Origin: Mainland China

Resistance measurement range: 0.01 ohm - 10 megaohm

Software Update: Yes

Supply voltage: 12V/24V

Testing frequency range: 1Hz-1MHz

Use: Not Telecommunication

Voltage: 9-48V

Wireless Support: No

Working voltage: 9V-48V

Topdiag P200 Pro Circuit System Tester 9V-48V Power Circuit Probe Kit Vehicle Leakage Detection Oscilloscope Diagnostic Tool

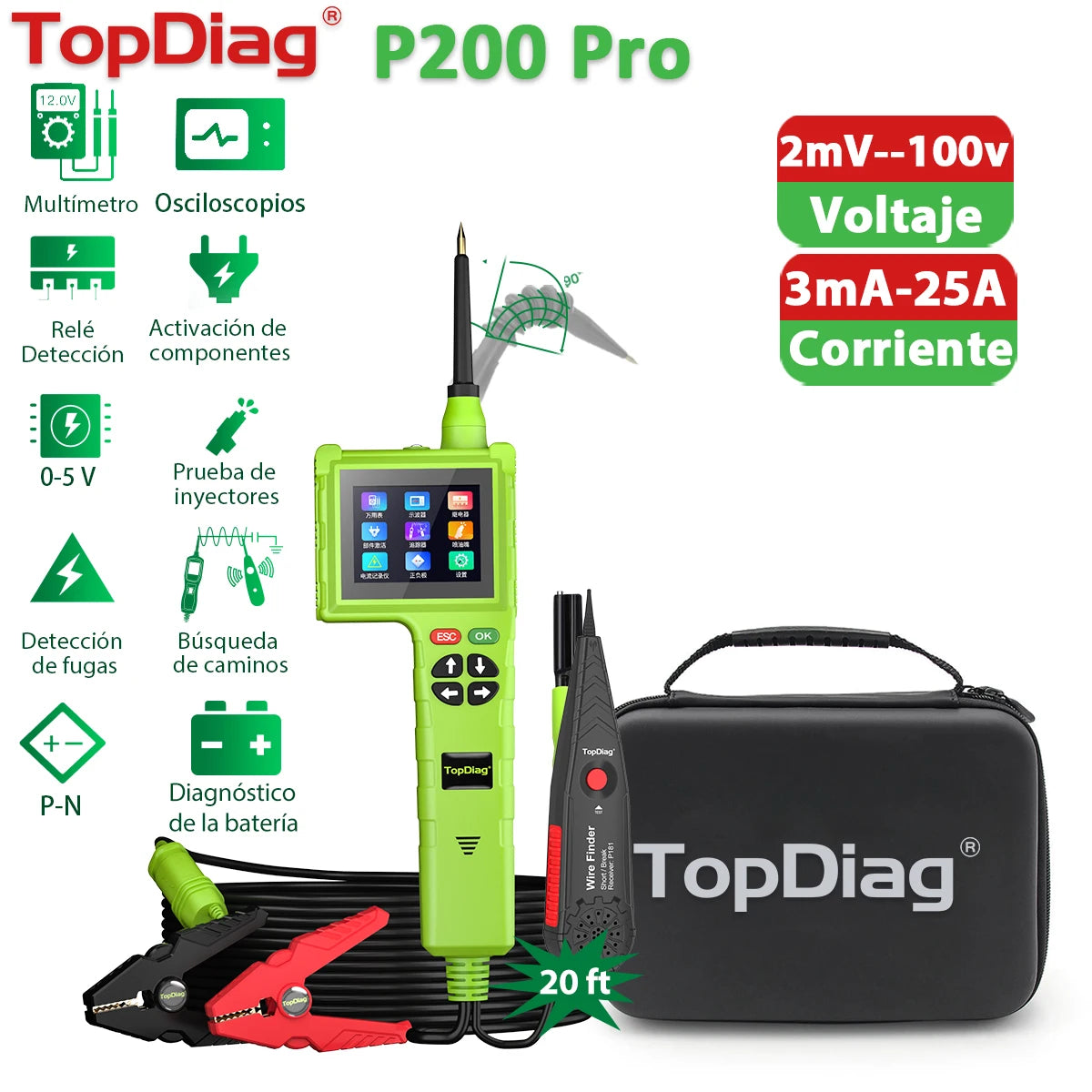

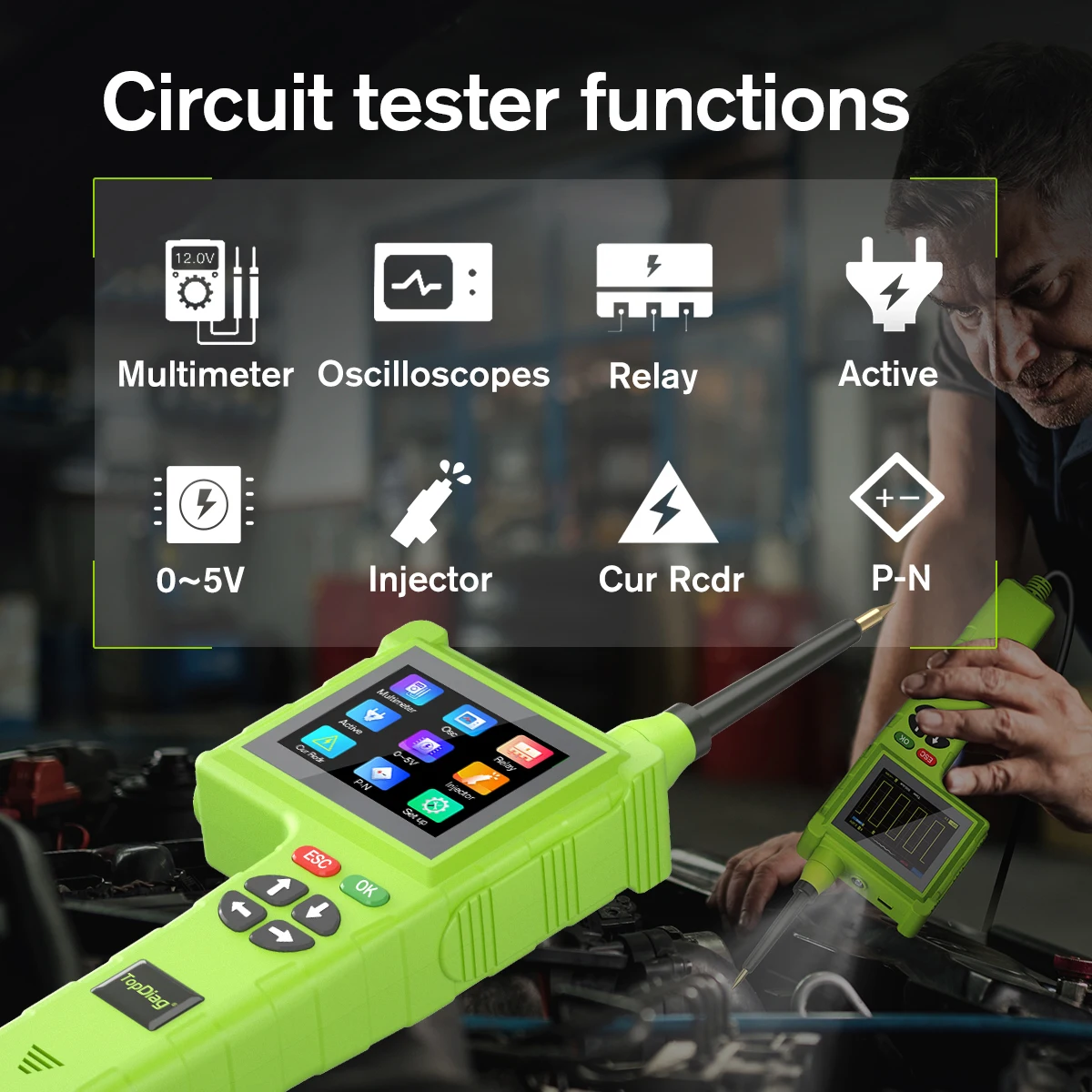

Feature:

☑ Car Voltage Test
☑ Power supply/ground detecting/open & short testing
☑ Multimeter Mode

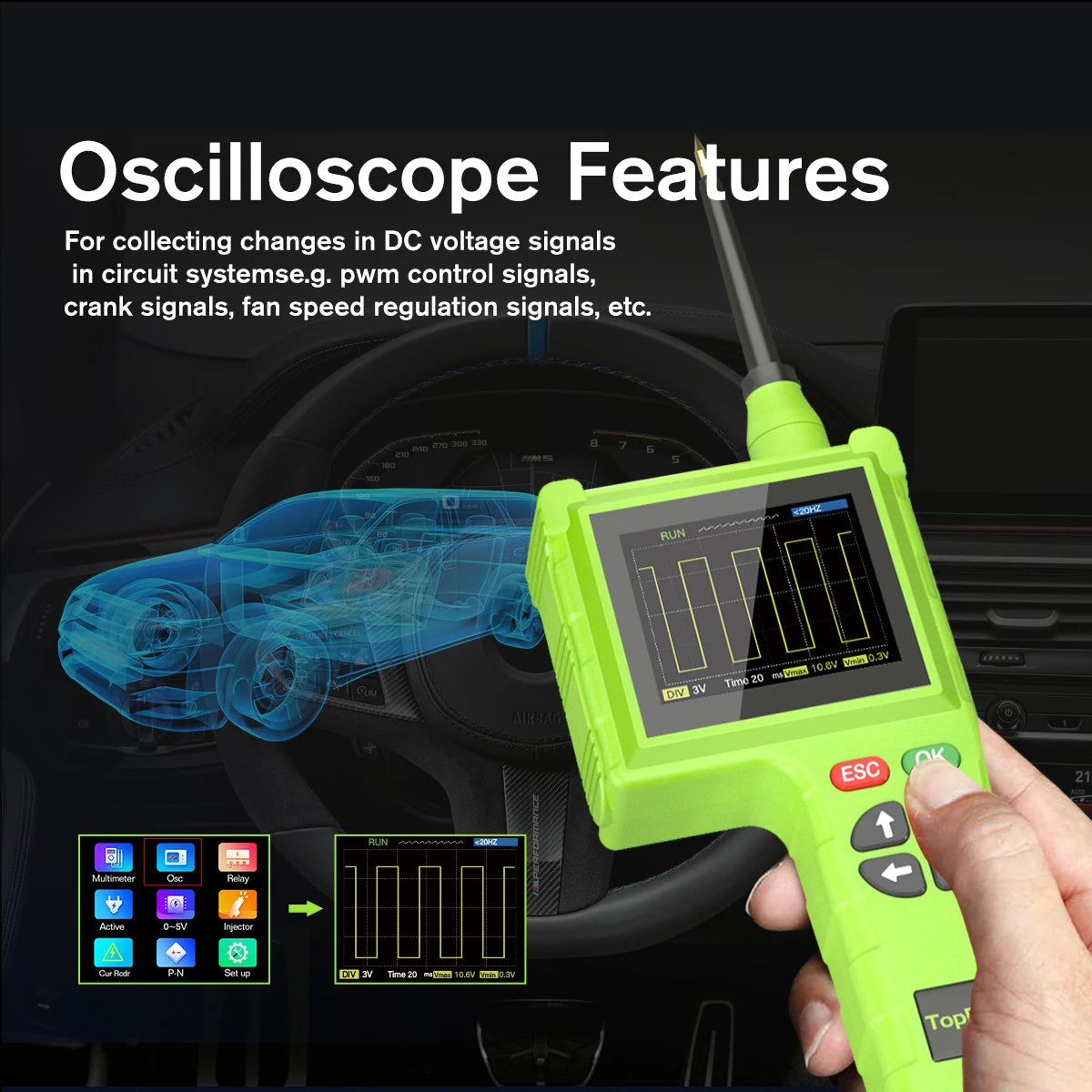

☑ Oscilloscope Mode
☑ Injector cleaning Mode
☑ Activate Component

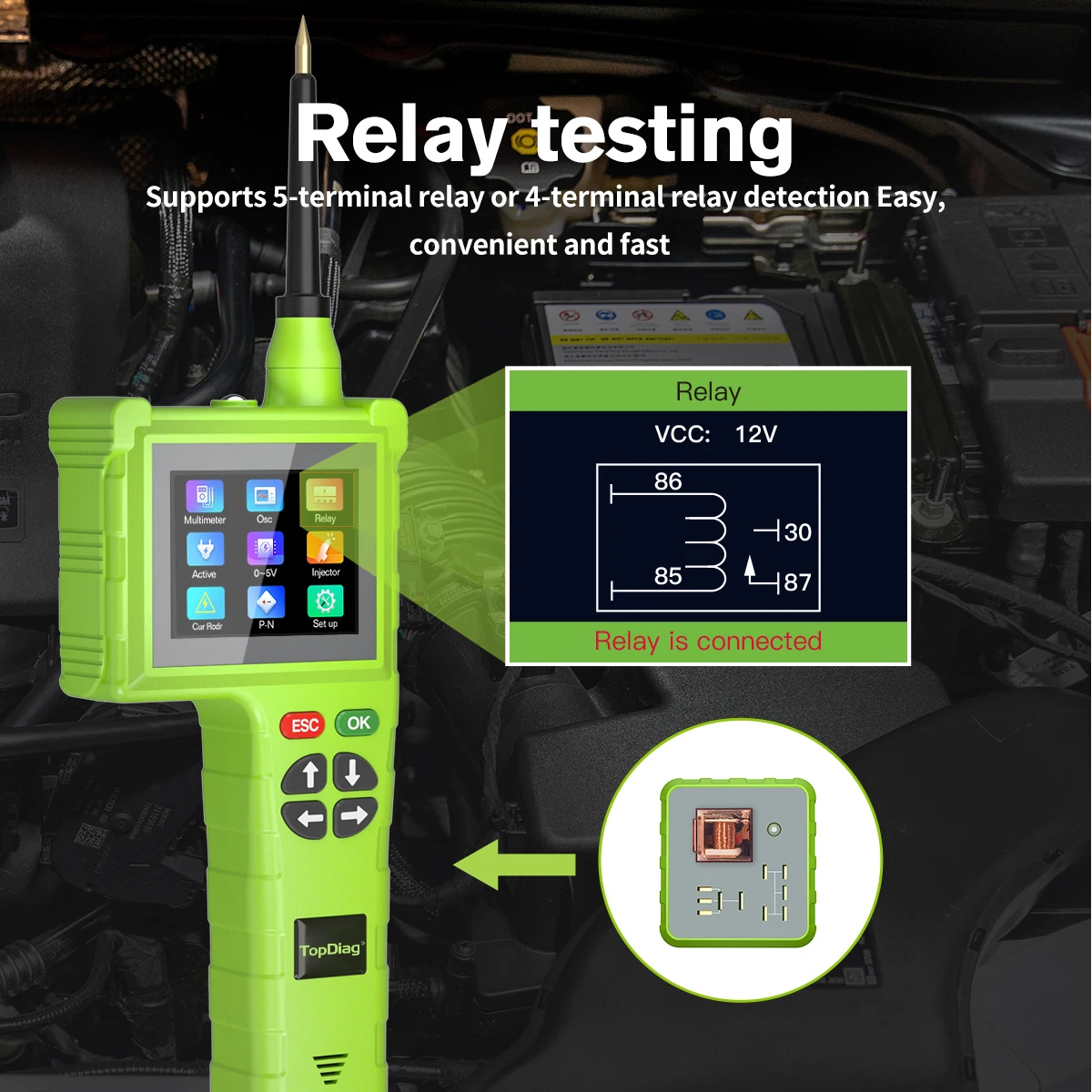

☑ Relay Test
☑ Continuity Testing
☑ Current Test
☑ Leakage Test, Current Leakage Record
☑ Continuity testing
☑ Signal circuit testing
☑ More...

Overview

•[Comprehensive Automotive System Tester]: This kit offers multiple functions, covering almost all probe tools available on the market. It includes: Multimeter function/ Current Leakage Record/ Oscilloscope mode/ Continuity testing /Relay test/ Activating components/ Power supply/ground detecting/open & short testing/ Trailer lights testing/ signal circuit testing/Checking for Bad Ground Contacts/ Injector cleaning/ 20FT extension cable & LED light/ AC/DC voltage/resistance/diode/frequency testing.

• [Current Leakage Detection]: The P200 Pro Tester features a 2.4-inch screen, supports real-time current size detection, and displays the current graph. It allows you to monitor the current status for up to an hour and playback to understand any leakage issues.

• [Smart Test & Polarity Test]: When connected to the Car Electrical Test Tool probe to measure voltage, resistance, or polarity, it automatically becomes an instant auto-range device. It displays corresponding parameter values and prompts on the HD LCD screen. The 20ft cable aids in diagnosing the car's condition quickly without the need to open the wiring.

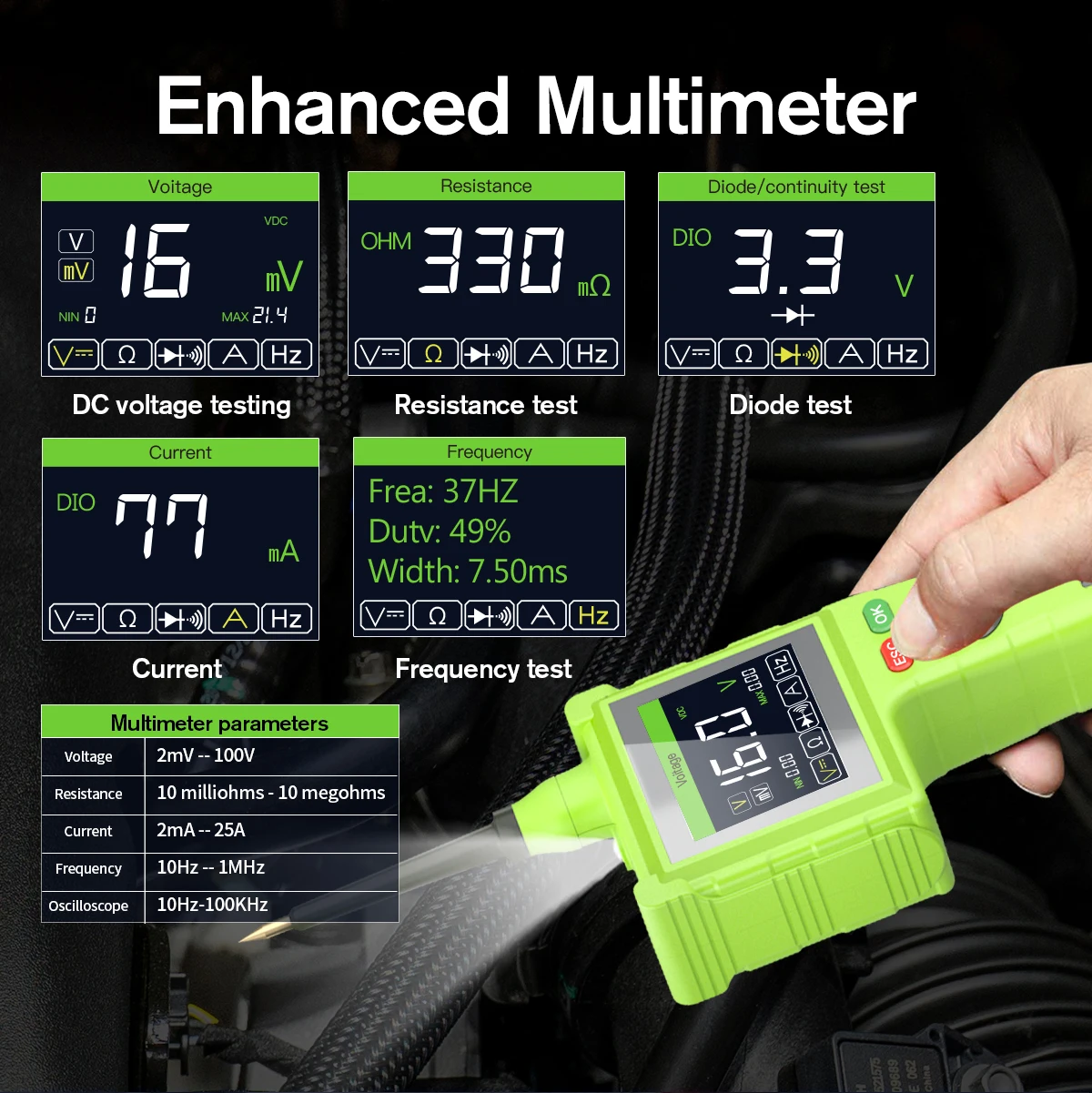

• [Multimeter & Oscilloscope Functions]: The P200 Pro Circuit Tester is a versatile and powerful Power Circuit Probe Kit. It contains multimeter functions for DC voltage (VDC), resistance (OHM), diode/on-off test (DIO), current (AMP), and frequency testing. Combined with the unique oscilloscope function and buzzer, it tests components based on voltage, resistance, frequency duty cycle, and waveform diagrams, quickly diagnosing circuit system problems.

Multimeter parameters

Voltage: 2mV--100V
Resistance: 10 milliohms-10 megohms
Current: 2mA--25A
Frequency: 10Hz --1MHz
Oscilloscope: 10Hz-100KHZ

Interface Display

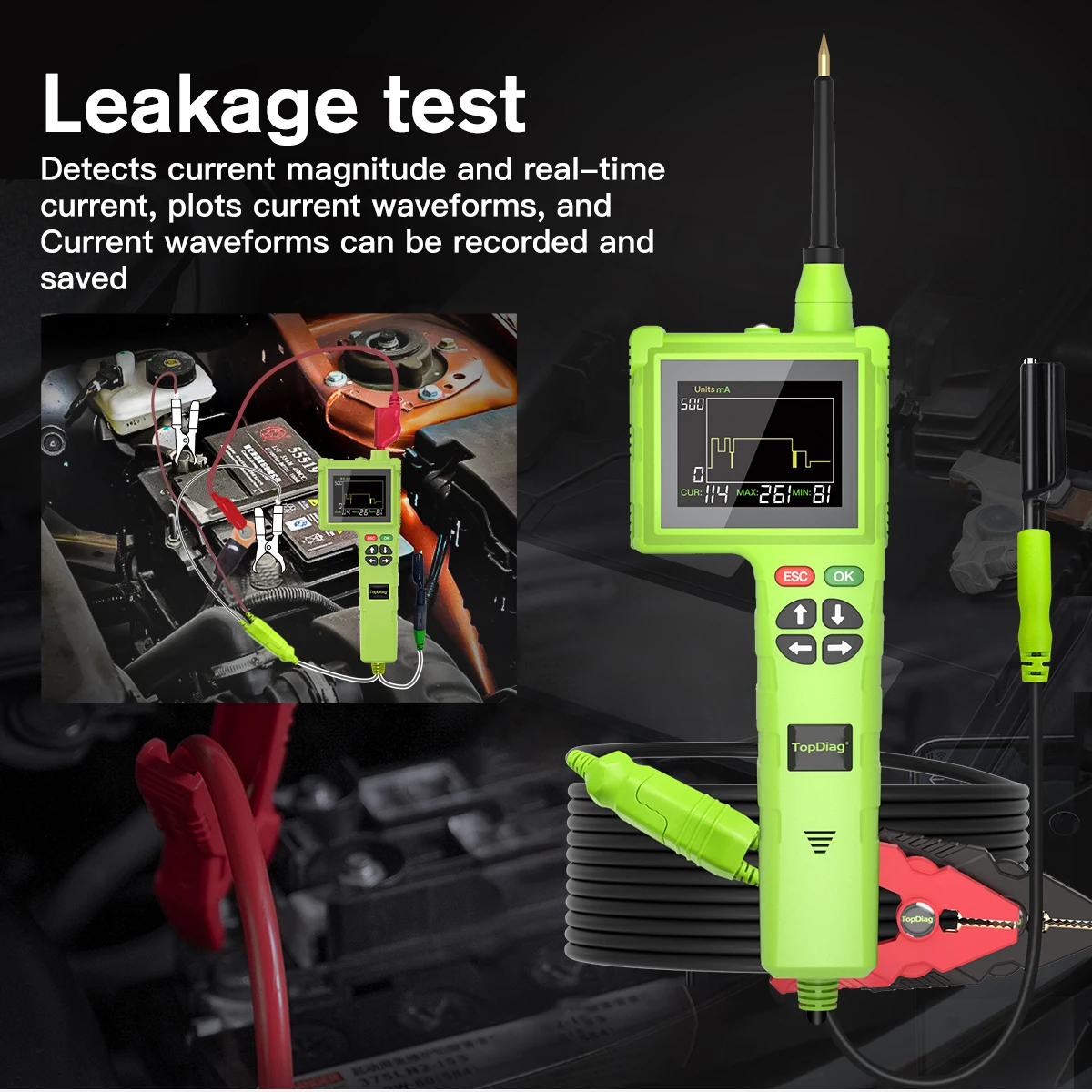

Leakage test

Detects current magnitude and real-time current, plots current wave forms, and Current wave forms can be recorded and saved.

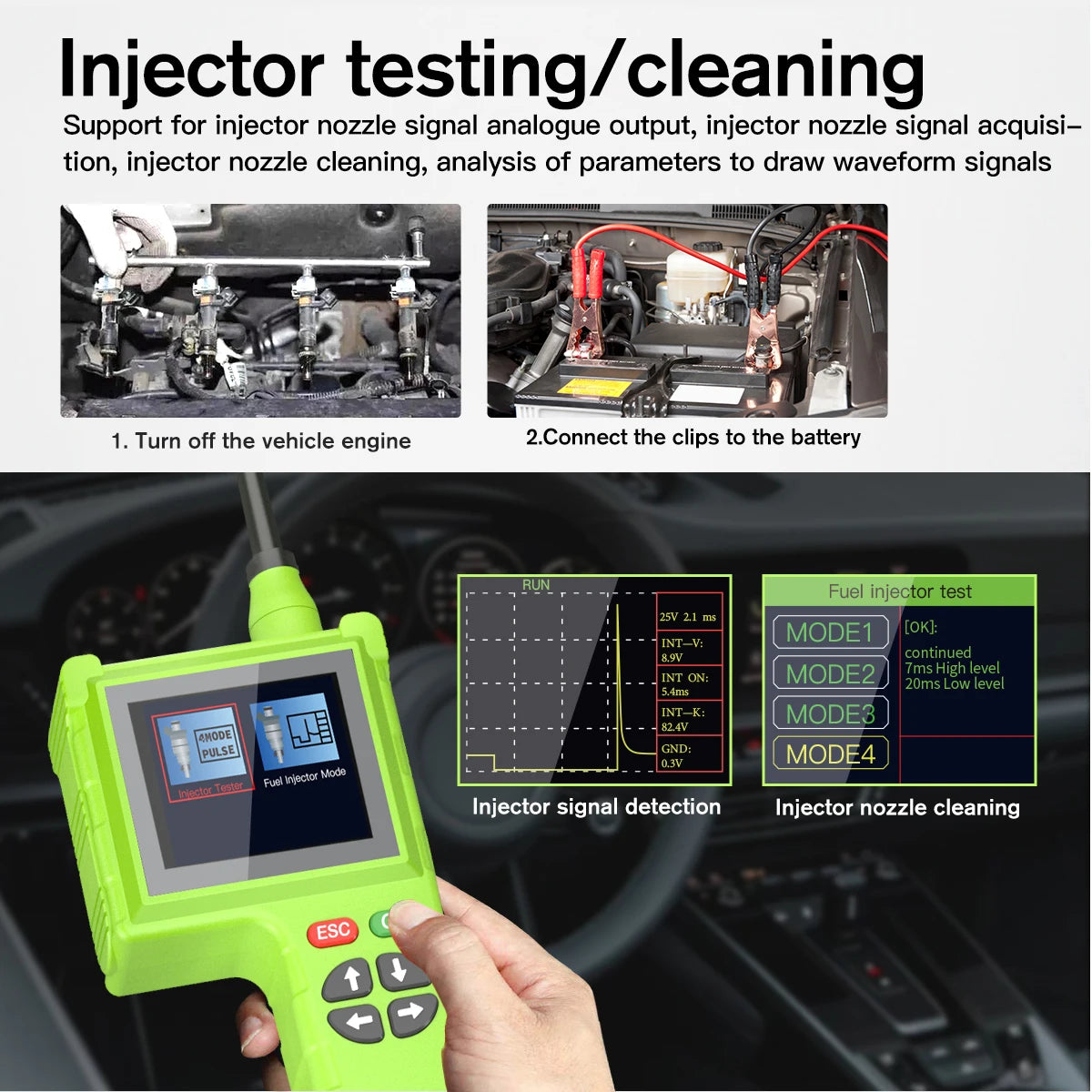

Injector testing/cleaning

Support for injector nozzle signal analogue output, injector nozzle signal acquisition, injector nozzle cleaning, analysis of parameters to draw waveform signals.
Step1: Turn off the vehicle engine
Step2: Connect the clips to the battery
